200 stks EVE LF50 Grade A 3.2V LiFePO4 50Ah Cellen

€ 10.402,00 (inclusief btw 21%)

Levertijd 1-4 weken

400stks M6 schroefdraadeinden

200 paar M6 studs vastlassen

Aantal

Specificaties

Netto gewicht 1,50 Kg

Bruto gewicht 1,50 Kg

Afmetingen (l,b,h) 13 x 3 x 18 cm

Omschrijving

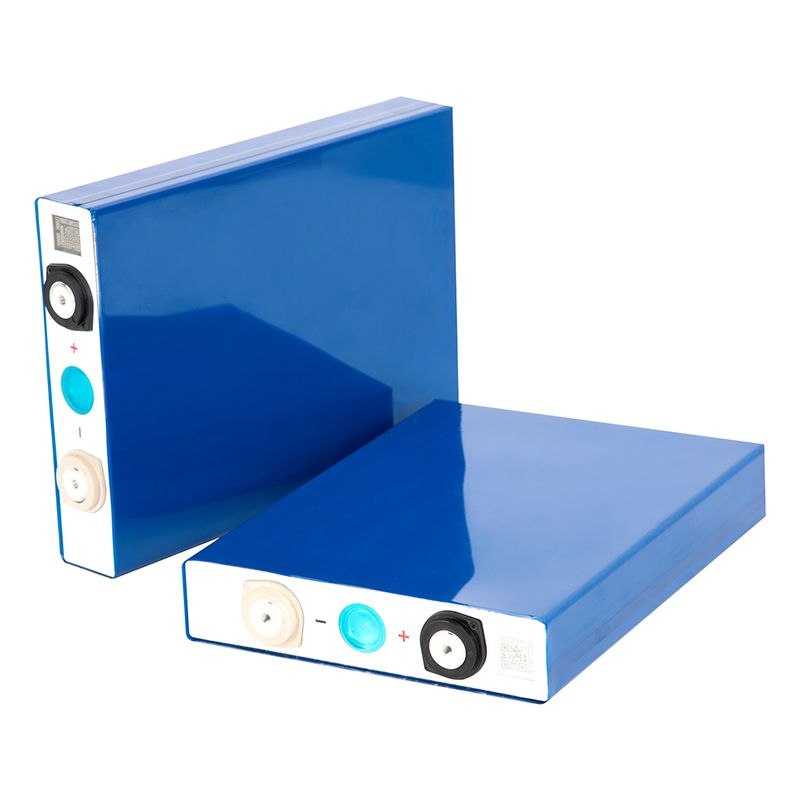

4x EVE LF50 Grade A 3.2V LiFePO4 50Ah

Nominal capacity \| Rated Capacity (0.2C)	50Ah	Charge Cycles \| Cycle Life
Nominal voltage \| Rated Voltage (0.2C)	3.2V	100% capacity utilization @1C/1C +25°C \| 100% DOD	≥7000
Max. charging current \| Max Charging Current	3C	Capacity utilization @1C/1C +45°C \| 100% DOD	≥2500
loading single cell \| Single cell charging	3.65V	Loading \| charging	0~45℃
charging battery pack \| Battery pack charging	3.65V	storage temperature \| Storage temperature	-20℃ ~ +60℃
Max. discharge single cell \| Single cell discharging	2.5V	working temperature \| working temperature	0°C ~ +40°C
Max. discharge battery pack \| Battery pack discharging	2.6V
Max. charge current / discharge current \| continuous current	3C/3C	Self-discharge rate per month \| Self-discharge rate (month)	≤2%
Max charge/discharge current pulse \| Impulse Current	5C (30s)	energy power density \| power density	>800w/kg
internal resistance \| Internal Resistance	≤0.7mΩ	weight \| cell weight	1.5kg±100g
Average discharge current \| Constant current	150A	cell size \| dimension	135.3mm x 180.8mm x 36.7mm

Hoge voltage BMS

€ 4.489,00

€ 1.989,00

€ 9,00

Nominal capacity \| Rated Capacity (0.2C)	50Ah	Charge Cycles \| Cycle Life
Nominal voltage \| Rated Voltage (0.2C)	3.2V	100% capacity utilization @1C/1C +25°C \| 100% DOD	≥7000
Max. charging current \| Max Charging Current	3C	Capacity utilization @1C/1C +45°C \| 100% DOD	≥2500
loading single cell \| Single cell charging	3.65V	Loading \| charging	0~45℃
charging battery pack \| Battery pack charging	3.65V	storage temperature \| Storage temperature	-20℃ ~ +60℃
Max. discharge single cell \| Single cell discharging	2.5V	working temperature \| working temperature	0°C ~ +40°C
Max. discharge battery pack \| Battery pack discharging	2.6V
Max. charge current / discharge current \| continuous current	3C/3C	Self-discharge rate per month \| Self-discharge rate (month)	≤2%
Max charge/discharge current pulse \| Impulse Current	5C (30s)	energy power density \| power density	>800w/kg
internal resistance \| Internal Resistance	≤0.7mΩ	weight \| cell weight	1.5kg±100g
Average discharge current \| Constant current	150A	cell size \| dimension	135.3mm x 180.8mm x 36.7mm
